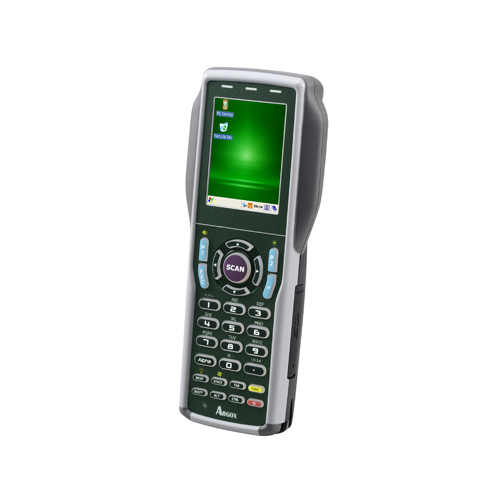

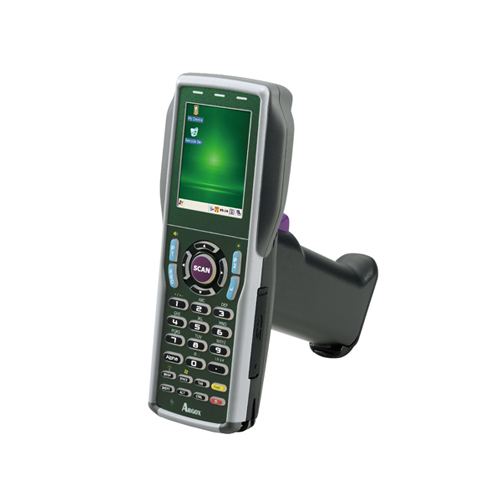

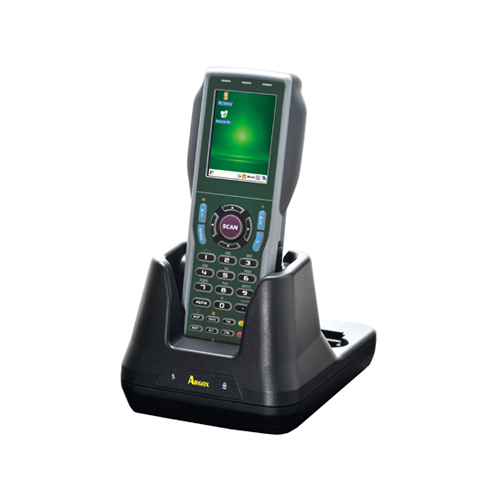

Introduction The PA-60 Mobile Computer is a powerful wireless handheld computing device based on the Windows CE® operating system and a fast CPU. The ergonomic, compact and durable PA-60 features a bright 2.4-inch TFT 320 x 240 QVGA display with touch screen, a high performance barcode scan engine, wireless communication support including Bluetooth and high speed wireless LAN 802.11b/g, and external USB and RS-232 interfaces. Memory capability includes 256MB DRAM, 256MB Nand Flash, and one standard SD card slot for expanded memory space demands. Lightweight at only 250g, the ergonomic PA-60 has an optional pistol grip for ease of scanning. Shockproof, dustproof, and waterproof in compliance with IP54 standards the PA-60 is built for rough environments. For generic applications, the PA-60 comes with a standard, comprehensive software developer kit (SDK) that supports a variety of I/O driver APIs, such as communications, Auto ID reading, DI/O control, and others. Accessories include a charging and communication cradle and cable, a pistol grip, and a four slot charging cradle. The PA-60 is suitable for a wide variety of applications including retail, distribution, warehouse, and logistics.
Features ● Microsoft Windows CE® 5.0 ● Sharp and bright color TFT QVGA display with touch screen ● Ergonomic, compact, robust and lightweight ● Bluetooth, 802.11b/g technology ● 1.2m(4 ft) drop resistance ● IP54 protection class ● User-accessible memory slot ● Quick attach handle ● Extremely long operation hours Specification
| | External I/O interface | USB / RS-232(4 Wires) | | | | Expansion slot | Standard SD (32G) | | | | OS | WinCE 5.0 | | | | CPU | ARM9 Core 533MHz | | | | RAM | 256MB Mobile DDRAM | | | | ROM | 256MB Nand Flash | | | | Display | 2.4” LCD TFT Transmissive, 320 x 240 QVGA 65K colors with Touch panel | | | | LCD | Blue, Green and Red | | | | Keypad | 29 Numeric | | | | Alert | Speaker, Vibrator | | | | Dimensions | 169.0mm (L) x 70.1mm (W) x 34.0mm (H) | | | | Weight | 250g (including battery) | | | | Scanner Systems | Long Range CCD scanner 2048 pixels | | | | Resolution | 0.127mm (5mil) at PCS 90% | | | | Depth of Field | 600mm (code 39, 20mils, PCS 90%) | | | | Scanning Rate | 400 scans /sec | | | | Readable Barcode | 1) 1D: Code 11, Code 39, Code 93, Code 128, Codabar, EAN 8, EAN 13, Industrial 2/5, Interleaved 2/5, | | | | Operating temperature | -10℃ to 60℃ / 14℉ to 140℉ | | | | Storage temperature | -20℃ to 70℃ / -4℉ to 158℉ | | | | Humidity | 1) Operating: Non-condensed 10-90%
2) Storage: Non-condensed 5-95% | | | | Impact resistance | 1) 1.2M/4ft (Terminal) 0.9M (Cradle)/(4 drops per 6 sides)
2) IP54 | | | | Electrostatic discharge | 1) +/- 15 KV air discharge
2) +/- 8 KV direct discharge | | | | EMC Regulation | FCC, CE, BSMI, CCC | | | | Developing tools | embedded Visual C++ 4.0, Visual Studio.NET, Visual Studio 2005, Windows CE® SDK
Scanner Configura | | | | Battery | 1) Mobile Computer: Rechargeable 3.7V 1950mAh Li-Polymer Battery
2) Optional Pistol Grip: Recharg | | | | Power | Power supply: DC 5V 3A
AC Power 100-240V 0.5A, 50-60Hz, 33-48VA | | | | Accessory | Charging & Communication Cradle / Pistol Grip / Charging cable / four slot charging cradle | | | | Agency Listing | CE, FCC, cTUVus, CCC, RoHS | | | | Attention | *This data sheet is for informational purposes only. Argox makes no warranties, expressed or implied | | | | BROCHURE | | |
|
