BRAND: COGNEX >> MODEL: Dataman8070 >> PART NUMBER: DMV-8072V-0100

Dataman8070
Category:
BARCODE UNATTENDED SCANNING SYSTEM
Brand:
COGNEX
Model:
Dataman8070
Part No:
DMV-8072V-0100
Barcode:
DMV-8072V-0100
Type:
MAIN UNIT
Description:
DMV8072V0100 DATAMAN 8070 HIGH-PERFORMANCE DIRECT PART MARK (DPM) CODE QUALITY VERIFIER KIT W/USB 2.0 SLIDE IN WITHOUT STAND FOV:27MMX20MM MINIMUM X-DIM: 6.0MIL 30,45AND 90DEGREE LIGHTING
OrderNo:
22702505


Introduction
Barcode verification is the process of grading the quality of barcodes. Barcode verifiers capture images and generate reports to demonstrate compliance to parameters within industry standardization guidelines. The DataMan® 8070 series verifier is packed with powerful lighting options, robust grading algorithms, a high-speed processing engine, and a high-resolution camera to capture and grade the most difficult DPM codes. Combined with simple DataMan Setup Tool software, DataMan 8070 verifiers deliver detailed, repeatable results.

Feature
As the only DPM verifier on the market with 30-, 45-, and 90-degree lighting options, the DataMan 8070 verifier can easily illuminate codes on textured, curved, and even highly reflective surfaces. This provides the best chance of reliably capturing and grading code images to verify compliance with the International Organization for Standardization AIM DPM Quality Guideline (ISO/IEC TR 29158).

Compared to other industry verifiers, DataMan 8070 verifiers offers greater versatility and speed to verify codes.
▪▪ 27 x 20 mm field-of-view (FOV)
▪▪ 6.0 mil minimum x-dimension
▪▪ High-speed processing engine
▪▪ 1.2-megapixel sensor
Fast, accurate algorithms provide reliable and repeatable results
The DataMan 8070 verifier is packed with the latest technology and software to grade even the most difficult DPM codes quickly and reliably. High-speed location and decoding capabilities combined with robust grading algorithms provide fast, accurate, and repeatable results.
The DataMan Setup Tool calculates an overall grade based on several quality parameters such as symbol contrast, modulation, pattern damage, and decodability. Detailed results show whether codes meet industry standards and autogenerated reports can be used to demonstrate compliance, as well as help pinpoint printing and process control issues.

BROCHURE


Know more about this product with it related information.
Empty


Below picture may contain accessories which may not include in the product you purchase, call our sales agent to verify before purchase.

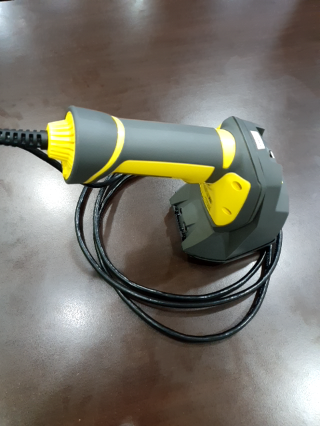

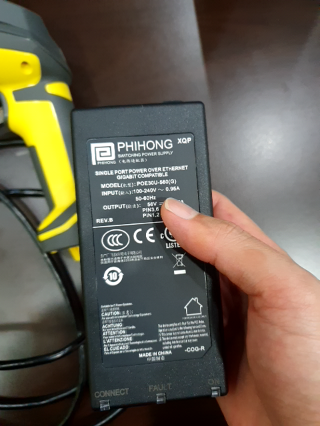

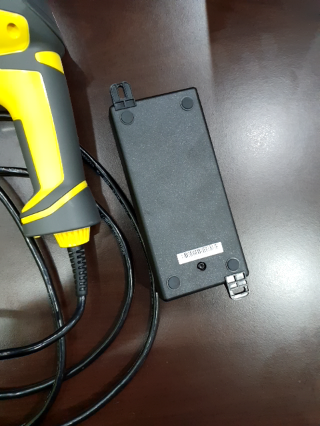

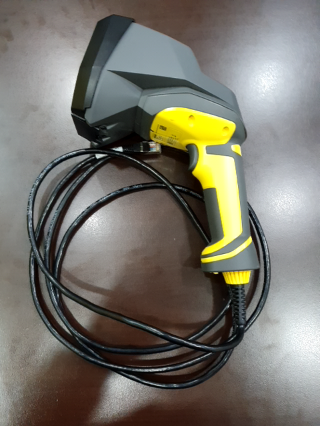

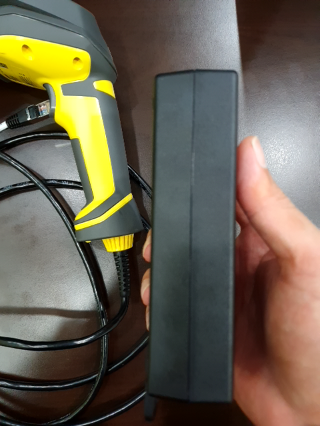

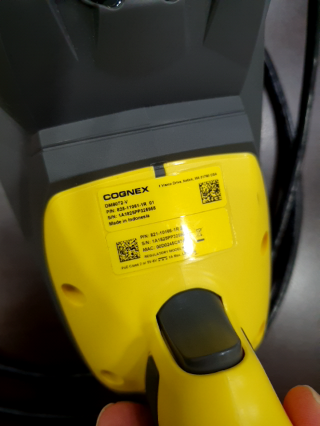

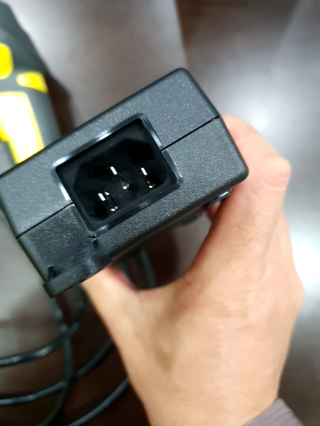

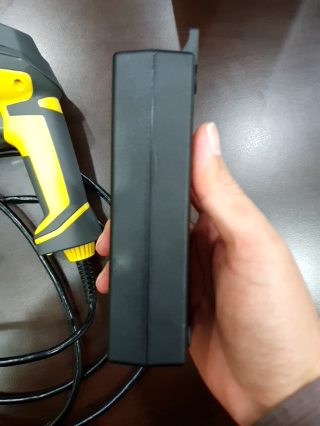

Different view of COGNEX DATAMAN8070 DMV-8072V-0100
Last Modified On: 19/Dec/2021 14:09:43 PM

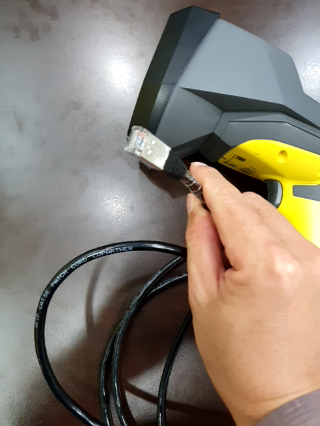

Different view of COGNEX DATAMAN8070 DMV-8072V-0100
Last Modified On: 19/Dec/2021 14:09:43 PM

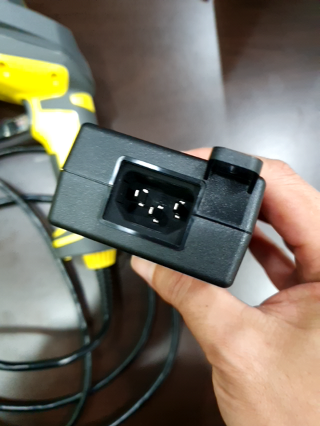

Different view of COGNEX DATAMAN8070 DMV-8072V-0100
Last Modified On: 19/Dec/2021 14:09:43 PM

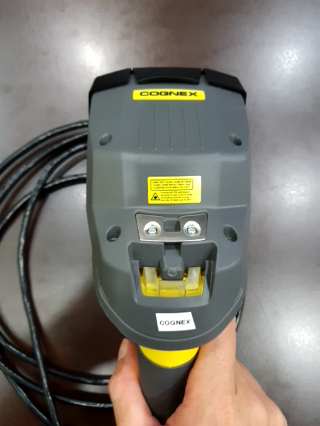

Different view of COGNEX DATAMAN8070 DMV-8072V-0100
Last Modified On: 19/Dec/2021 14:09:43 PM

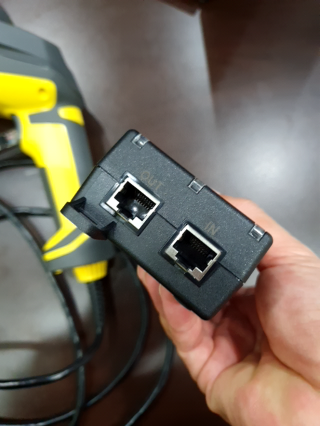

Different view of COGNEX DATAMAN8070 DMV-8072V-0100
Last Modified On: 19/Dec/2021 14:09:43 PM

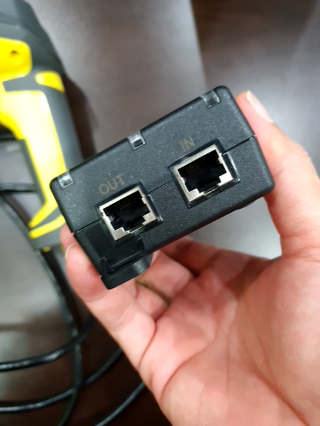

Different view of COGNEX DATAMAN8070 DMV-8072V-0100
Last Modified On: 19/Dec/2021 14:09:43 PM

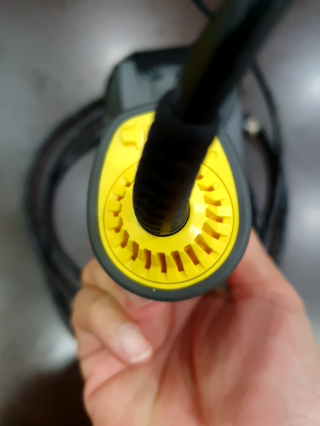

Different view of COGNEX DATAMAN8070 DMV-8072V-0100
Last Modified On: 19/Dec/2021 14:09:43 PM

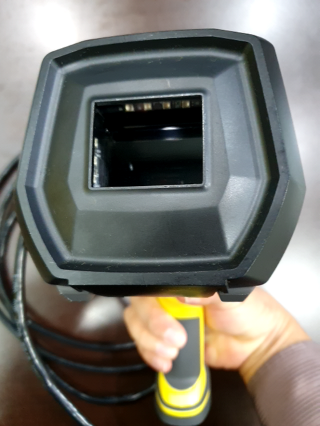

Different view of COGNEX DATAMAN8070 DMV-8072V-0100
