Introduction

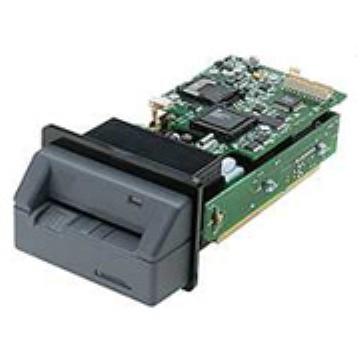

The IntelliStripe 320 motorized card reader allows for fast and reliable reading of magstripe and/or Smart Card data on cards that meet the ISO 7810, 7811, 7816 specifications. Its motorized card transport is fast and smooth, with low mechanical jitter, and provides for accurate and consistent card reading.
The IntelliStripe 320 is rugged and corrosion resistant, utilizing a zinc die-cast chassis, high-impact plastic bezel, and stainless steel components. It can withstand a wide range of operational and environmental conditions, and is an ideal card reader for ATMs, vending machines, or self-service kiosks. Its motorized operation allows the card to be securely held within the reader during the entire transaction process, and eliminates the possibility of unwanted human intervention during card read operations.
Feature
Can be integrated with ATMs and other unattended, self-service systems
On-board intelligence for processing magstripe cards, Smart Cards and memory cards
Reads and writes all ISO 7816 T=0, T=1 microprocessor Smart Cards
Smart Card data transfers up to 115 kbs
Reads up to 3 tracks of magnetic stripe data
Bi-directional read capability
Up to 500,000 insertions (1,000,000 passes) with ISO-conforming cards
Accepts cards with CP8 or ISO contact positions
BROCHURE
