MC3300 series mobile computer part number definition for various specification configuration and keypad combination.
07/May/2019
The part number for MC3300 define the type of the MC3300 mobile computer is either standard, premium or premium plus model, different type of mobile computer carry different RAM and ROm memory specification. From the part number, you also able to know the scanner is carry 1D or 1D+2D scan engine, it also define will the mobile computer come with camera or not.

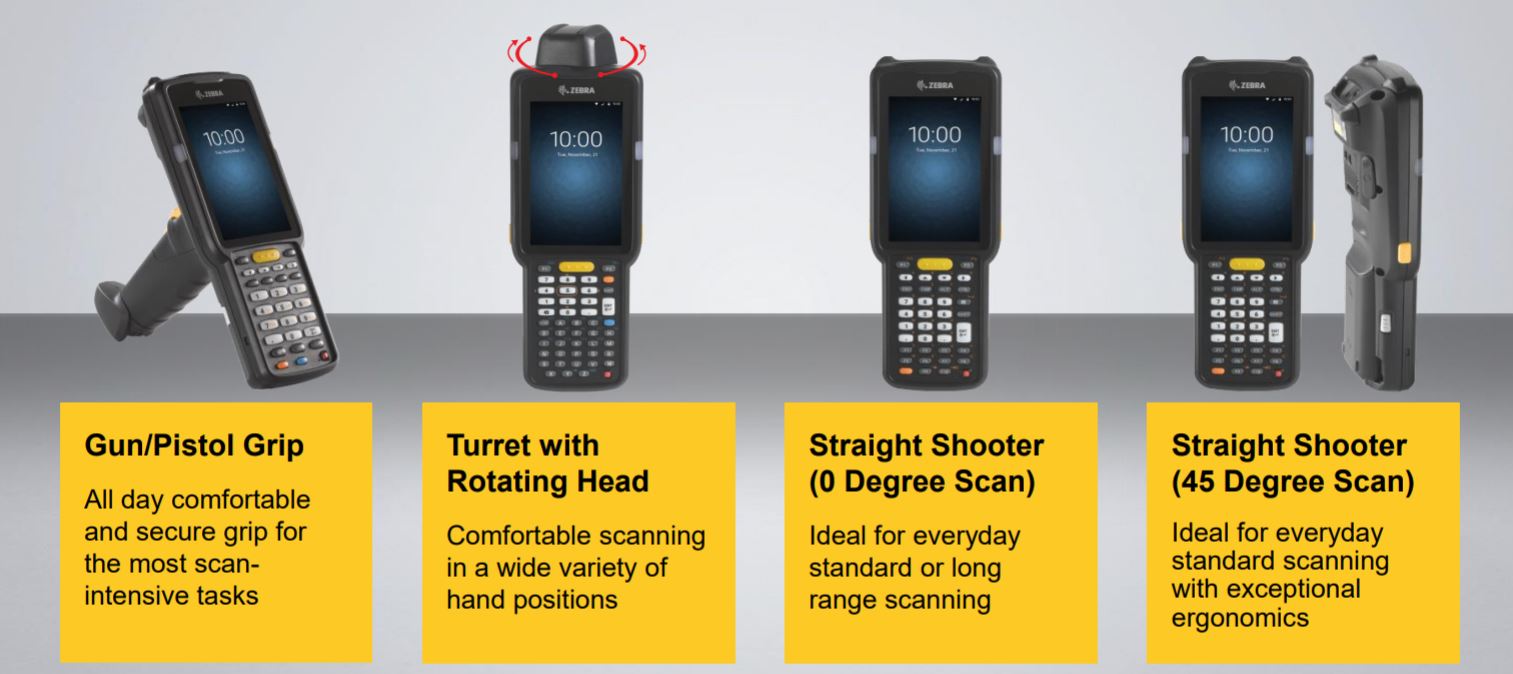

Part number for the MC3300 also give the user the physical shape of the scanner, the shape include Rotating head, straight shooter with 0 degree or 45 degree scan engine, and gun shape model.
For the part number, user also can define the type of keyboard layout which consist of 29 keys, 38 keys or 47 keys. You may order the MC3300 with different type of battery combination include standard battery, extended battery or without battery. At the same time, select the correct android type you want, Android with GMS or without GMS. last is select the mobile computer base on your country region, most of the country other than US and India can use the Rest of World model.
X1: K = Premium model 4GB RAM/16GB ROM/ Premium Plus 4GB RAM/32GB ROM, M = standard model 2GB RAM/16GB ROM
X2+X3:

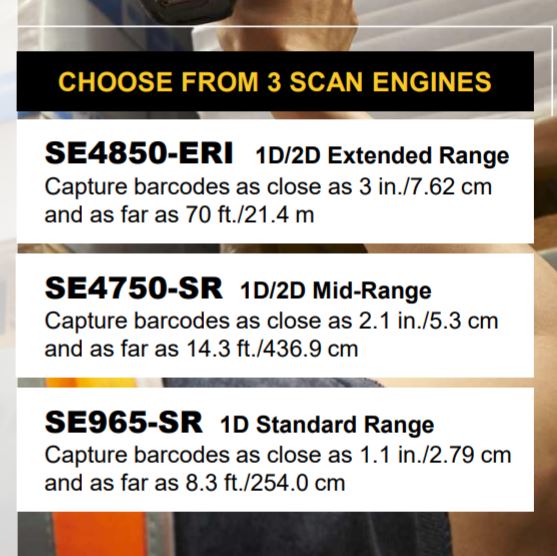

GI= Gun + 2D Imager SE475x No Camera
GL=Gun + 1D Laser SE96x No camera
GE=Gun + 2D Imager SE485x Long Range No Camera
RL = Rotating Head with 1D Laser SE96x No Camera
RC =Rotating Head with 1D Laser SE96x + camera
SN = straight + 45degree + 2D Imager SE475x No camera
SP= straight + 45degree + 2D Imager SE475x + camera
SL= straight + 0 degree + 1D Laser SE96x No camera
SI = straight + 0 degree + 2D Imager SE475x No camera
SB = straight + 0 degree + 2D Imager SE475x + camera
SE = straight + 0 degree + 2D Imager SE485x Long Range No camera
SG = straight + 0 degree + 2D Imager SE485x Long Range + Camera
X4: 2=29Keys, 3=38Keys, 4=47Keys
X5: 0=No Battery , S= Standard Battery, H= High Capacity Battery
X6: A= Android without GMS , G= Android with GMS
X7: 2= 2GB RAM/16GB ROM No sensor No NFC, 3= 4GB RAM/16GB ROM+Sensors+NFC, 4= 4GB RAM/32GB ROM+Sensors+NFC
X8: RW=Rest of World, IN=India, US- North America
