ARGOX >> AS8312 >> AS-8312-USB
Preview
AS8312
Zoom
Category:
BARCODE SCANNING
Brand:
ARGOX
Model:
AS8312
Part No:
AS-8312-USB
Barcode:
AI/AS8312USB
Type:
MAIN UNIT
Description:
AS8312USB LONG RANGE CCD 1D+PDF SCANNER USB BAIGE COME WITH CABLE USB KIT
OrderNo:
22700101
Ask Quote


Introduction
The fast and accurate AS8310(1D only) or AS8312 Long Range Imager scans 2-Dimensional symbols such as PDF417, RSS, and Code 16K, as well as the full range of barcode symbologies. With a rapid 450 scans per second, the AS-8312’s performance is comparable to laser barcode scanners but at a much lower cost. With superior depth of field, this scanner delivers long range accuracy even in poor conditions. The durable AS-8312 is perfect for tough industrial environments. For retail checkout, the optional caddy allows hands-free scanning. Suitable for a wide range of applications, from professional offices to shipping & receiving, the AS-8312 Long Range Imager offers outstanding quality and performance.

Specifications:
Light source 630 nm visible red LED.
Optical system 2048 pixel CCD (charge-coupled device).
Program upgrade Enabled by build-in flash memory.
Width-head 78mm.
Depth of scan field Up to 600mm.
Scanning width 160mm.
Scan speed 450 scans/sec.
Shock 1.5m drop onto concrete.
Resolution 0.1mm(4mils) - Code 39, PCS=90 %, on contact.
EMC UL,FCC Class B,CE.
Decode capability Autodiscriminates all standard one-dimension barcodes; other symbologies can be ordered optionally.
Case material ABS (over molded at contact pointed).
Cushion material Double injection.

BROCHURE



Below picture may contain accessories which may not include in the product you purchase, call our sales agent to verify before purchase.

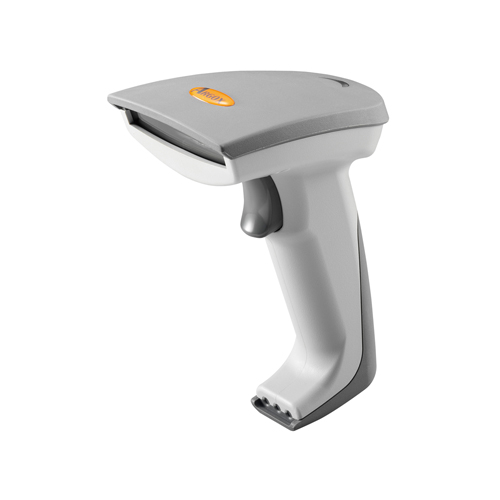

~/public/Product/PictureVideo/22700101/AS-8312-01.jpg
