GODEX T10REWINDER BARCODE PRINTER ORDERING NUMBER: 22701387

BRAND: GODEX >> MODEL: T10REWINDER >> PART NUMBER: 011-T-10052-000

Preview

Zoom

Category:

BARCODE PRINTER

Brand:

GODEX

Model:

T10REWINDER

Part No:

011-T-10052-000

Barcode:

011-T-10052-000

Type:

ACCESSORIES

Description:

011T10052000 T10 EXTERNAL LABEL REWINDER WITH 14 INCH/SEC REWINDING SPEED GREY COLOUR 12VDC ADJUSTABLE SPEED PLUG MAXIMUM 4.72 INCH WIDTH CAN USE WITH AG2000

OrderNo:

22701387

Ask Quote

Introduction

The Rewinder Everyone Can Use. The T10 rewinder has an idler arm that can be positioned to rewind labels from either side of the printer. Depending on the user’s requirements, the T10 can rewind "inside or outside" label rolls.

Feature

Can be used with all Godex's printers.

Supports inside and outside label rewinding.

Stylish appearance plus a rugged design for long term reliability

Colored LED indicator provides rewinder operation status

Support three Core Size: 1” (25.2 mm – 25.6 mm), 1.5” (40 mm – 40.6 mm) and 3" (76 mm – 76.6 mm); Core and coreless kits included.

Specification

Paper Width	Max. 120 mm (4.72”)
Rewind Speed	Auto mode: 14 IPS (max) Fixed: Coreless 5.4IPS / 1 inch Roll: 6.3IPS
Label Roll Diameter	Max. O.D. 203.2 mm (8”)
Core Diameter	Coreless I.D. 1” (25.2 - 25.6 mm) I.D. 1.5”x2 (37.4 - 38 & 40 - 40.6 mm) I.D. 3” (76 - 76.6 mm)
Label Roll Weight	5 Kg (11 lbs)
Rewinding	Label Inside / Label Outside
Motor	Hybrid Motor
Power	100 - 240VAC 24W, 24V Adapter
Environment	Storage: -4°F to 140°F (-20°C to 60°C) Operation: 41°F to 104°F (5°C to 40°C)
Humidity	10 - 85% (non-condensing RH)
Agency Approvals	CE, FCC Class A
Dimension	Length: 13.7” (349 mm) Height: 11.9” (303 mm) Width: 7.1” (180 mm)
Weight	11 lbs (5 Kg), excluding consumables
Note	* Specifications are subject to change without notice. All company and/or product names are trademarks and/or registered trademarks of their respective owners.

BROCHURE

Know more about this product with it related information.
Thanks for the gift from GoDEX
Godex Letter of Authority Certificate for year 2019

Below picture may contain accessories which may not include in the product you purchase, call our sales agent to verify before purchase.

No data to display

	Loading…

Item related to this product

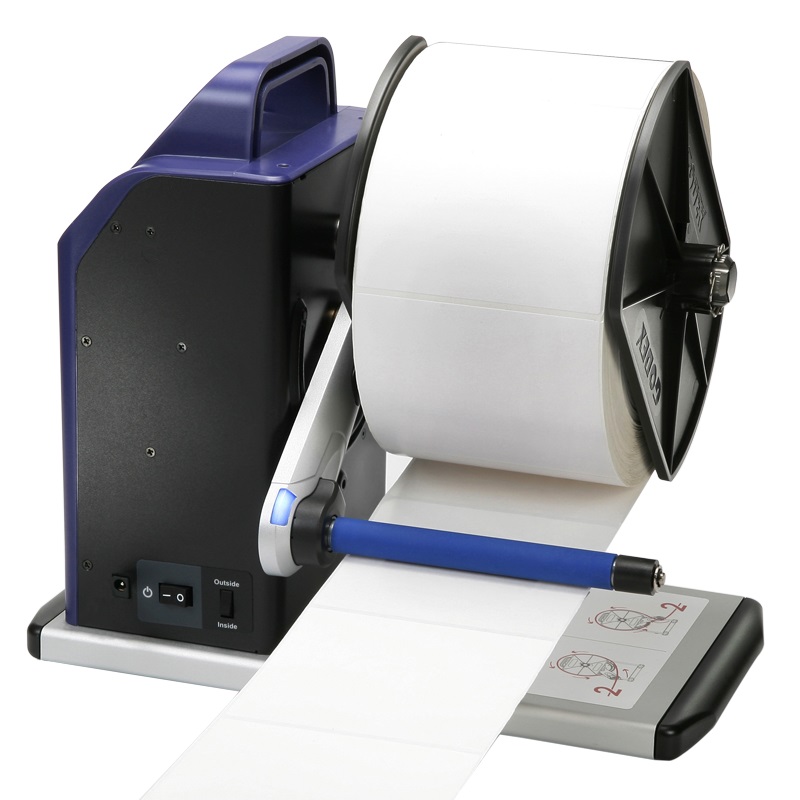

22700229
031-T10013- 000
031T10013000 T10 EXTERNAL LABEL REWINDER WITH 12 INCH/SEC REWINDING SPEED GREY COLOUR 12VDC

Item use this product
ItemCode	Description
BAR00619	99-30002-003 9930002003 X3200 300DPI 4INCH 5IPS LCD USB PARALLEL RS232 GREY 32BIT CPU 8MB FLASH 16MB SDRAM RTC PPLA/PPLB/PPLZ 360M RIBBON 8INCH OD MEDIA
22700641	AG2000 AG2000 LABEL APPLICATOR UP TO 175MM/SEC SPEED WITH MAXIMUM 150MM LABEL SPRING LOADED TOP OR SIDE STAND ALONE SET EXCLUDE CONVEYOR EXCLUDE INSTALLATION
22700674	AG-2000-110100 AG2000110100 AG2000 PRINT & APPLY SYSTEM FULLY ADJUSTABLE AG2000 APPLICATOR ARM CONTROL UNIT & FAN (DOES NOT INCLUDE THE PRINTER AND CONVEYOR)

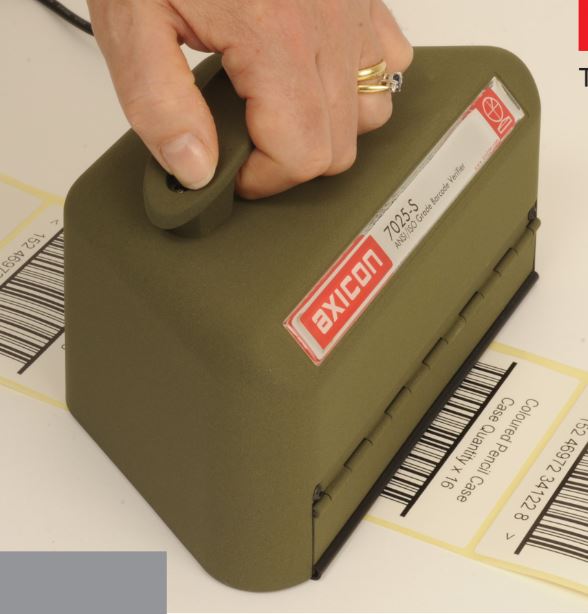

22701736	Axicon7025-S AXICON 7025-S 1D BARCODE VERIFIER CONTACT ON FLAT SURFACE MAXIMUM SCAN WIDTH 195MM USB 2.0, 180MA AT 5V,100 VERIFICATION SCANS PER SECOND
