Introduction I4 industrial printers are constructed with an all-metal frame to inherit the beauty of durability and reliability. I4 series have wrinkle-free design, apply automatically to both Inside wound ribbon and Outside wound ribbon, and feature full support of interfaces - Dual USB hosts, Serial, Ethernet, and Wi-Fi can be expanded to fit in all type of applications. I4-series industrial printer - UP to 8 IPS, 33% faster than previous models. It can deliver much smoother printing process and maintain top printing quality under high speed. By equipping with new flip-down type cutters, including full-cut and partial-cut types, I4-series Industrial printer comes with user friendly design that makes your media loading time much easier, be means of simple media-jam free instructions. In addition to cutting backing paper, the full-cut cutter can also work on continuous labels with adhesive. I4-series Industrial printers have dramatically improved on software funcitons. New feature one-key media positioning consists by Intelligent Print Mode and Smart Print Mode, will greatly improve media detection and reduce wasted labels. Once I4 series printer is powered on - It will have emulation auto detect function, between PPLA, PPLB, and PPLZ. Specification | | Printing method | Direct Thermal & Thermal Transfer | | | | Printing resolution | 300 dpi (12 dots/mm) | | | | Printing Speed | 6 ips | | | | Printing Length | Max:50”(1270 mm) | | | | Printing Width | 4.16” (105.7 mm) | | | | Memory | 32 MB SDRAM, 16MB Flash ROM (USB storage up to 32 GB) | | | | CPU Type | 32 bit RISC microprocessor | | | | Sensors | Media Transmissive sensor x 1 (movable) / Media Reflective sensor x 1 (movable) & Head open switch / Ribbon end sensor | | | | Operation Interface | LED indicator x 3, Button x 3, Mulitiling Back-lit LCD Display 16 x 2-line & RTC | | | | Communication Interface | Standard: Ethernet, dual USB hosts, USB device, RS-232

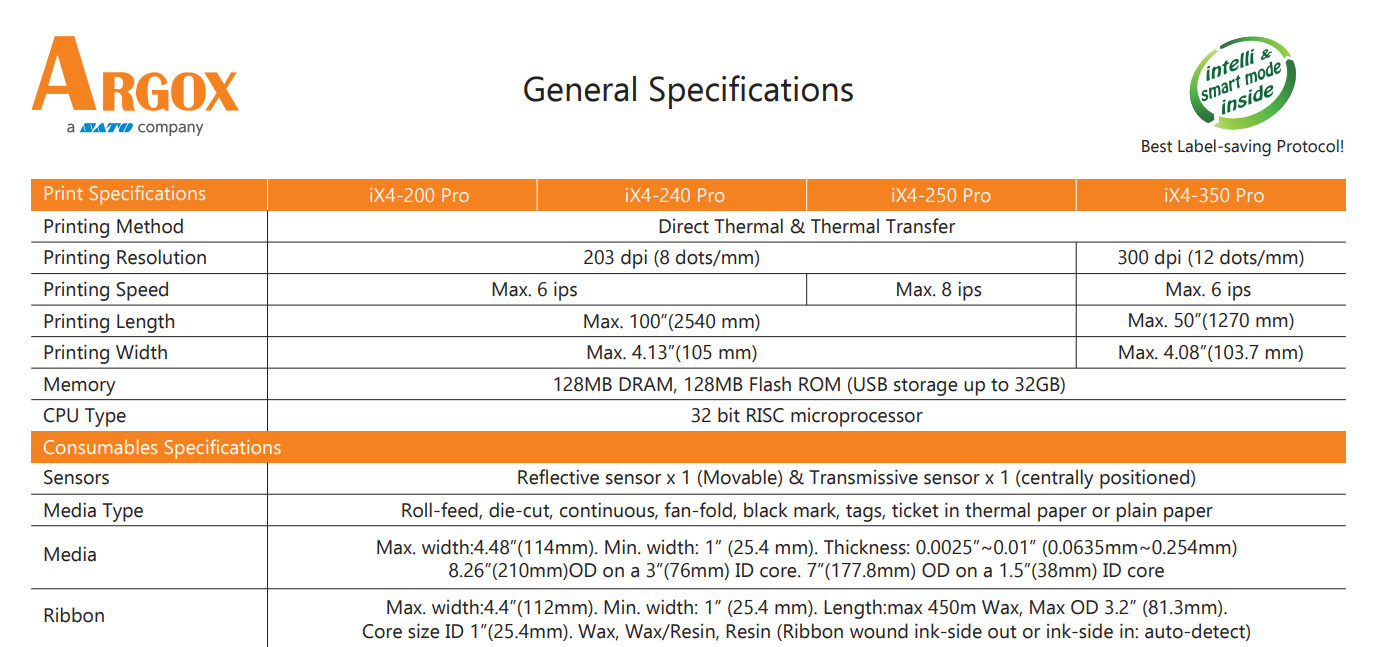

Option: Wi-Fi (IEEE 802.11 b/g/n), GPIO, Parallel, Buzzer | | | | Fonts | Internal character sets standard support. Soft fonts are downloadable | | | | 1D Barcodes | UPC-A, UPC-E, JAN/EAN, CODE39, CODE93, CODE128, GS1-128 (UCC/EAN128), CODABAR (NW-7), ITF, Industrial 2 of 5 MSI, UPC add-on code, POSTNET, GS1 DataBar Omnidirectional, GS1 Databar Truncated, GS1 Databar Stacked, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Limited, GS1 DataBar Expanded, GS1 DataBar Expanded Stacked. | | | | 2D Barcodes | QR Code, PDF417 (including MicroPDF), DataMatrix (ECC200), GS1 DataMatrix, Maxicode, Aztec | | | | Graphics | PPLA: PCX, BMP, IMG, HEX, GDI
PPLB: PCX, BMP, Binary raster, GDI
PPLZ: GRF, Hex, GDI | | | | Emulation | PPLA+PPLB+PPLZ | | | | Software - Label editing | Windows Driver (Windows XP/Vista/Win7/Win8/Win10), BarTender® from Seaguall Scientific | | | | Software - Utility | Printer Tool | | | | Media Type | Roll-feed, die-cut, continuous, fan-fold, tags, ticket in thermal paper or plain paper and fabric label | | | | Media | Max. width:4.4”(112mm). Min. width: 1” (25.4 mm). Thickness: 0.0025”~0.01” (0.0635mm~0.254mm) 8”(203mm) OD on a 3”(76mm) ID core. 7”(177.8mm) OD on a 1.5”(38mm) ID core. | | | | Ribbon | Max. width:4.4”(112mm). Min. width: 1” (25.4 mm). Length:max 360m Wax, 300m Semi-Resin. Max OD 3” (76mm). Core size ID 1”(25.4mm). Wax, Wax/Resin, Resin (Ribbon wound ink-side out or ink-side in: auto-detect) | | | | Dimensions | W 250mm x H 263mm x D 418mm | | | | Weight | 24lbs(11 kgs) | | | | Power Source | Internal Universal Switching Power supply. Input voltage: 100~240V, 50~60Hz | | | | Real Time Clock | Type CR2032, +3V, 225mAh | | | | Operation Environment | Operation Temperature: 40˚F~100˚F (4˚C~38˚C). 10%~90% non-condensing.
Storage Temperature: -4˚F~122˚F (-20˚C~50˚C) | | | | Optional Items | Guillotine-Full Cutter / Partial Cutter, Rotary Cutter, Peeler, Rewinder | | | | Agency Listing | CE, CB, cULus, FCC, ICES, Energy Star | | | | | | |
|
