Category:
BARCODE SCANNING
Description:

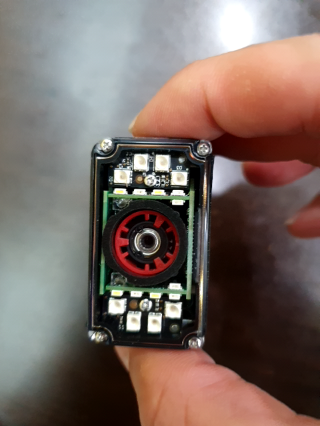

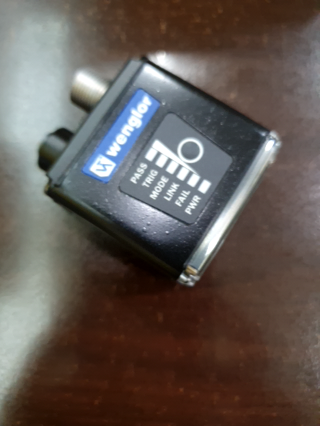

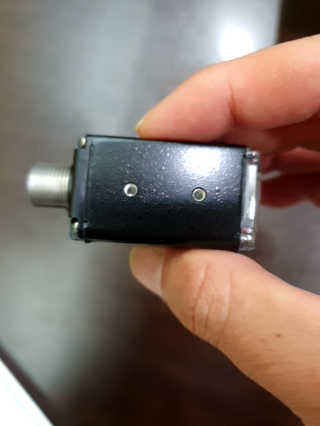

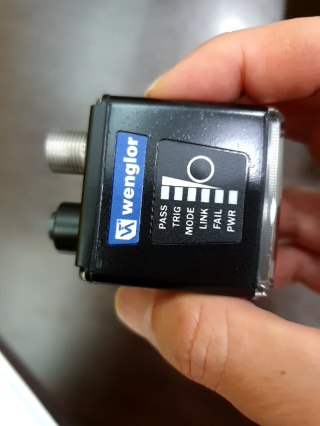

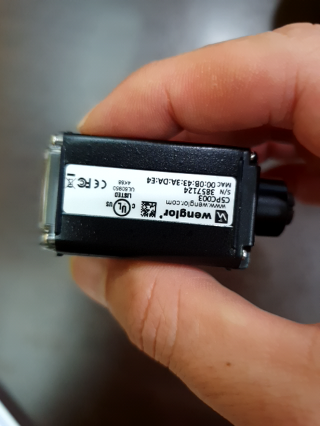

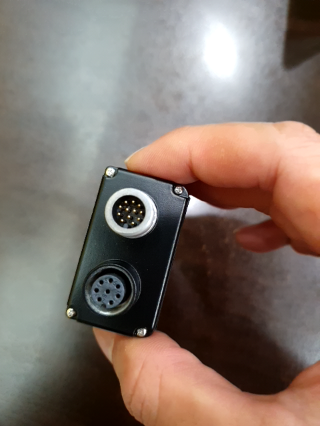

C5PC003 WENGLOR 2D BARCODE SCANNER AUTO-BUTTON FUNCTION INTEGRATED CODE RECONSTRUCTION INTEGRATED LED ILLUMINATION PROFINET AND ETHERNET/IP WEB LINK, EXCLUDE CABLE AND PSU
Introduction
These 2D barcode scanners are suitable for omnidirectional scanning of 1D and 2D codes. The following code types can be processed:1D codes: Code39, Code93, Code128, UPC/EAN, BC412, Interleaved 2 of 5, Codabar, Postal Codes, Pharmacode2D codes: DataMatrix ECC 0...200, PDF417, Micro PDF417, QR-Code, Micro QR-Code, Aztec Code, GS1 Databar, Dot codeAdditional code types upon request.
Feature
Barcode Density: High density
Resolution: 1280 ? 960 Pixel
Light Source: Red Light
Wavelength: 617 nm
Service Life (T = +25 °C): 50000 h
min. Resolution: 0,127 mm
Supply Voltage: 5...30 V DC
Current Consumption: (Ub = 24 V) 150 mA
Scan Rate: 42 scans/sec
Temperature Range: 0...45 °C
Switching Output Optoisolator
Number of Switching Outputs 3
Switching Output/Switching Current 100 mA
Reverse Polarity Protection yes
Interface RS-232/Ethernet
Trigger Input Optoisolator
Signal Input Optoisolator
Number of Signal Inputs 3
