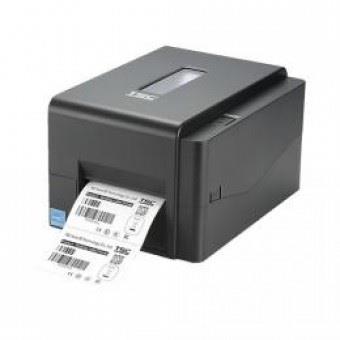

INTRODUCTIONThe introduction of the new TE200 Series expands TSC Auto ID's growing line of affordable, high-performance desktop-class label printers.
The TE200 Series provides customers throughout the world with a competitive, durable, entry-level desktop printer that is both versatile and easy to use.
The two available models include the TE200 which offers the industry standard 8 dots per mm (203 dpi) print resolution at an industry best 6 inches per second, and the 12 dots per mm (300 dpi) TE300 for use with printing small fonts, barcodes, or graphics. The TE200 Series offer customers a great combination of price and performance, that features a fast 400 Mhz processor, 16 MB of DRAM, and 8 MB of Flash storage memory, so you never have to wait for your labels to start printing.
Innovation and Value
The new TE200 Series of 4" wide desktop-class thermal label printers were designed and built to deliver best-in-class performance at a price other printers simply can't match. The TE200's modular thermal transfer print mechanism protected by an outer ABS shell is designed to withstand tough environments. These affordable, hardworking printers will print high-quality labels all day long, producing thousands of clear, crisp barcode and identification labels per day.
Innovations include an energy-saving Energy Star 2.0 rating matched with an easy-to-load print mechanism. The printer will take both 1/2" core 72 meters to 110 meters, or 1" core 300-meter thermal transfer ribbons allowing customers to use whichever supply of ribbons they have available. The TE200 offers multiple printer language emulations right out of the box, and a powerful scalable font engine that makes it easy to replace nearly any existing label printer.

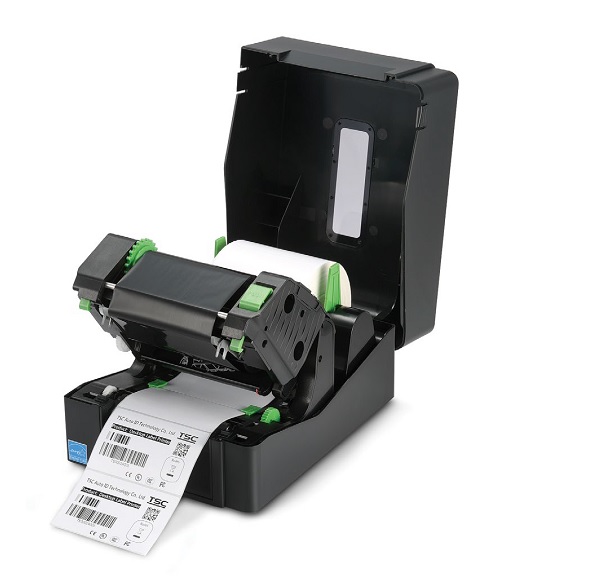

Both the printhead and platen roller can be easily changed without using any tools. The printer features both Gap and Black Mark sensing to accurate label registration. And the media cabinet can handle industry standard 5 inch OD labels on 1" or 1.5" cores. The powerful hybrid electric motor is strong enough to handle larger 8" OD label rolls on its optional external label unwinder.
The TE200 Series innovative design offers our resellers new opportunities to satisfy unique market applications. The print mechanism which normally resides within the printer may be purchased separately for those looking to integrate custom label printing capability into their own manufactured designs. Applications for this unique print mechanism can include use with kiosk applications, small label applicators, two color on-demand printing, and two-sided printing.
The TE200 series offers a low initial price, uses the most cost-effective supplies available, and is built to last. These virtually trouble-free units feature a standard two-year warranty. Once you plug it in, you won't have to worry about it.
The TE200 series can print a wide variety of labels ranging from shipping labels to compliance and general purpose product identification labels and tags. Other applications include automobile service shops, walk-in shipping, and mail centers, and inventory control for stock rooms.
Key Features
- 152.4 mm (6") per second print speed
- 300 meter (984") ribbon supply on a 25.4 mm (1") core (coated outside)
- 72 to 110 meter (361") ribbon supply on a 12.7 mm (0.5") core (coated outside)
- 127 mm (5") OD internal media supply, optional external media holder supports 214 mm (8.4") OD label rolls on 76.2 mm (3") core
- The print mechanism for kiosk applications
- 400 MHz 32-bit RISC processor with 16 MB SDRAM, 8 MB Flash memory
- Internally scalable true type fonts
- TSPL-EZ firmware emulates TPLE and TPLZ languages out of the box
- Free Windows drivers and label design software (available via download)
- ENERGY STAR qualified
