BRAND: TP-LINK >> MODEL: TL-SF1005D >> PART NUMBER: TL-SF1005D
Preview

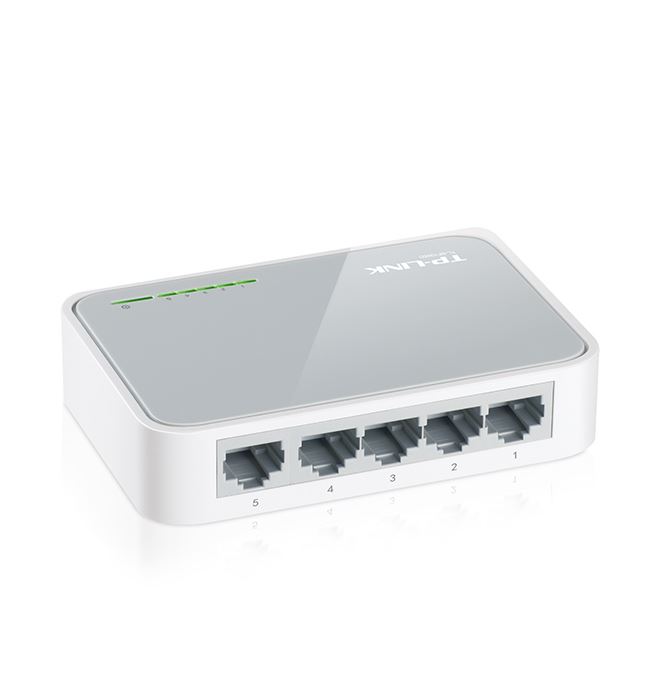

TL-SF1005D
Zoom
Category:
OTHER DEVICES
Brand:
TP-LINK
Model:
TL-SF1005D
Part No:
TL-SF1005D
Barcode:
TL-SF1005D
Type:
MAIN UNIT
Description:
TLSF1005D TPLINK 5 PORT 10/100MBPS DESKTOP SWITCH WITH ADAPTOR
OrderNo:
68400076
Ask Quote

Introduction
The TL-SF1005D 5-Port 10/100Mbps desktop switch provides an easy way to expand your wired network. All 5 ports support auto-MDI/MDIX, eliminating the need to worry about the type of cable to use. Featuring full duplex mode, the TL-SF1005D can process data at a rate of up to 200Mbps making it an ideal choice for expanding your high performance wired network. Moreover, with innovative energy-efficient technology, the TL-SF1005D can save up to 68% of power consumption, making it an eco-friendly solution for your home or office network.
TL-SF1005D Fast Ethernet Switch provides 5 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports..Featuring non-blocking switching architecture,TL-SF1005D forwards and filters packets at full wire-speed for maximum throughput. With 10K Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1005D work reliably.
The auto features of this ethernet switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100 Mbps) and intelligently adjusts for compatibility and optimal performance.

Feature
5 10/100Mbps Auto-Negotiation RJ45 ports, Supports Auto MDI / MDIX
Green Ethernet technology saves the power up to 68%
IEEE 802.3x flow control provides reliable data transfer
Plastic case, desktop design
Plug and play, no configuration required
HARDWARE FEATURES
Interface5 10/100Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Fan QuantityFanless
Dimensions (W X D X H)4.1 x 2.8 x 0.9 in. (103.5 x 70 x 22 mm)
Power ConsumptionMaximum: 1.48W (220V/50Hz)
External Power SupplyExternal Power Adapter(Output: 5.0VDC / 0.6A)
SOFTWARE FEATURES
Transfer MethodStore and Forward
Advanced FunctionsGreen Technology, saving power up to 68%
802.3X Flow Control, Back Pressure
OTHERS
CertificationFCC, CE, RoHs
Package Contents5-Port 10/100Mbps Desktop Switch
Power Adapter
Installation Guide
EnvironmentOperating Temperature: 0℃~40℃ (32℉~104℉);
Storage Temperature: -40℃~70℃ (-40℉~158℉);
Operating Humidity: 10%~90% non-condensing;
Storage Humidity: 5%~90% non-condensing
