Introduction

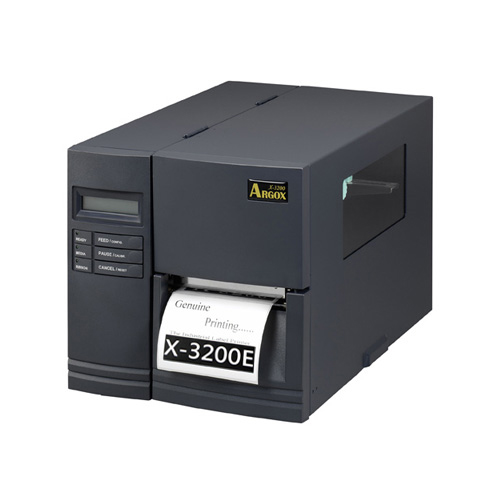

The X-3200 industrial barcode printer features 300dpi printing for high quality text and graphics on fabric labels, safety labels and labels for small items such as jewelry.
The heavy duty X-3200 is capable of 5ips print speed using its 32-bit RISC microprocessor. The 8MB Flash and 16MB DRAM onboard memory facilitates high quality printing. An internal RTC lets you print time and dates on labels. RS-232, parallel, USB and optional Ethernet (X-3200E) interfaces allow easy plug-and-play integration with your current system. For stand-alone operation the X-3200 has a standard PS/2 interface for connecting an input device such as a keyboard or scanner, as well as a multilingual LCD display for convenient installation, configuration, and operation.
The X-3200 and X-3200E printers provide outstanding value as it delivers industrial strength high quality printing for a wide range of labels.
Feature
● For heavy duty labeling demand
● 300dpi high resolutionavailable
● 32-bit CPU, LCD display, up to 5ips printing speed, and enlarged memories
● Adjustable reflective and transmission double sensor system ensures precise label detection
to meet versatile media demands
● Centronics parallel, RS-232 and USB interfaces available for versatility applications,
and PS/2 interface for standalone operation: directly connecting a PC keyboard to input
label data without a PC
● Industrial-strength media management: 360M ribbon & 8” media compartment
● Easy media loading & ribbon installation
● An external switch sets the printer for use with either ribbon wound ink-side in or ink-side out
● Durable and easy maintenance : easy-toreplace cutter and peeler
● Support 1D/GS1 Data bar, 2D/ Composite codes and QR barcodes
● Full range of options: Cutter, Peeler, media stacker,and standalone keyboard (Argokee)
● Printer Server external for Ethernet/Wireless/Bluetooth options
Specification
| | Printing method | Direct Thermal & Thermal Transfer | | | | Printing resolution | 300dpi(12 dots/mm) | | | | Printing Speed | 1~up to 5 ips(25.4~127mm/s) | | | | Printing Length | Max 50”(1270mm)/ Min 0.2”(5mm) | | | | Printing Width | MAX 4.16 | | | | Memory | 16MB DRAM(13MB user available)
8MB Flash ROM(6MB user available) | | | | CPU Type | 32 bit RISC microproceessor | | | | Sensors | Media gap & black line Reflective sensor x 1 (Movable) & Transmissive sensor x 1(Movable)
Head o | | | | Operation Interface | Back-lit LCD, 2-line x 16, LED Indicator x 3(Ready/Media/Ribbon) | | | | Communication Interface | Centronics Parallel(Baud rate 2400 ~ 115200 bps), RS-232, USB, PS/2 keyboard, Ethernet | | | | Fonts | Internal character sets standard
5 alpha-numeric fonts from 0.049”H ~ 0.23” H (1.25mm ~ 6.0mm) | | | | 1D Barcodes | PPLA: Code 39 (standard/with checksum digit), Code 93 Interleaved 2of 5 (standard/with checksum digi | | | | 2D Barcodes | PPLA/PPLB: MaxiCode, PDF417, Data Matrix (ECC200 only), QR code, Composite codes
PPLZ: MaxiCode, | | | | Graphics | PPLA/PPLB: PCX, BMP, IMG, HEX,GDI, Binary raster(PPLB Only)
PPLZ: GRF, Hex amd GDI | | | | Emulation | X-3200E: PPLA, PPLB
X-3200ZE: PPLZ | | | | Software - Label editing | Windows Driver (Win 2000/XP/Vista/Windows 7), BarTender | | | | Software - Utility | Printer Utilit, Font Utility | | | | Media Type | Roll-feed, die cut, continuous, fan-fold, tags, ticket in thermal paper or plain paper and fabric la | | | | Media | Max Width:4.4”(112mm) Min Width:1”(25.4mm) Thickness:0.0025”~0.01”(0.0635~0.254mm)
Max roll ca | | | | Dimensions | W250 x L418 x H263 mm | | | | Ribbon | Ribbon roll – max OD: 3”(76mm) Ribbon Length: max 360m wax, 300m resin Core size – ID: 1”(25.4mm) wi | | | | Weight | 11 kgs | | | | Power Source | Internal Universal Power Supply
100 ~ 240 VAC, 50/60 HZ | | | | Real Time Clock | Standard | | | | Operation Environment | Operation Temperature: 40℉~100℉ (4℃~38℃),
10% ~ 90% non-condensing,
Storage Temperature: -4℉ | | | | Optional Items | Guillotine Cutter,Rotary Cutter, Dispenser kit, Rewinder, Media Stacker, ArgoKee | | | | Agency Listing | CE, FCC, UL, cUL, CCC, RoHS |
|
