BRAND: DATALOGIC >> MODEL: DM3610 >> PART NUMBER: DMS200-110

DM3610
Category:
VISION AND SENSOR
Brand:
DATALOGIC
Model:
DM3610
Part No:
DMS200-110
Barcode:
932702170
Type:
MAIN UNIT
Description:
932702170 DM3610 DMS200110 2HD SOLU NTEP DIMENSIONING SYSTEM FOR LFT AND NLFT APPLICATIONS EXCLUDE INSTALLATION AND EXCLUDE ACCESSORIES
OrderNo:
82700106


Introduction
The DM3610 Come with single and 2-head system. This is a high-performance in-motion dimensioning system that provides the length, width, and height of both cuboidal and irregular objects. The DM3610 1 head and 2-Head system is certified for Legal-For-Trade applications and its highly accurate measurements make it the perfect solution for spatial management applications. The DM3610 is a compact, overhead  dimensioning unit that automatically measures the length, width, and height of packages as they are transported on a conveyor. The self-contained dimensioner is designed for simple installation and enables a range of applications across multiple markets including  parcel, warehousing & distribution. The DM3610 is certified in Legal-For-Trade applications and its highly accurate measurements make it the perfect solution for spatial management applications. In the 2-head configuration, the DM3610 can provide dimensions for irregular as well as cuboidal objects. Used in conjunction with barcode scanners and scales, the DM3610 improves operations for systems such as AS/RS, trailer cubing, manifesting and revenue recovery.

Feature
Accurate dimensioning at high speed:
• NTEP certified accuracy of ± 0.2” for length and width and ± 0.1” for height at belt speeds up to 620 fpm
• OIML certified accuracy ± 5 mm for length, width and height at belt speeds up to 3.1 m/s “Plug-and-Play” functionality:
• Simple parameter upload simplifies field replacement Reliability:
• IP65 rating
• -10°-50° C (14°-122° F) operating temperature
• Industrial M12 connectors
BROCHURE

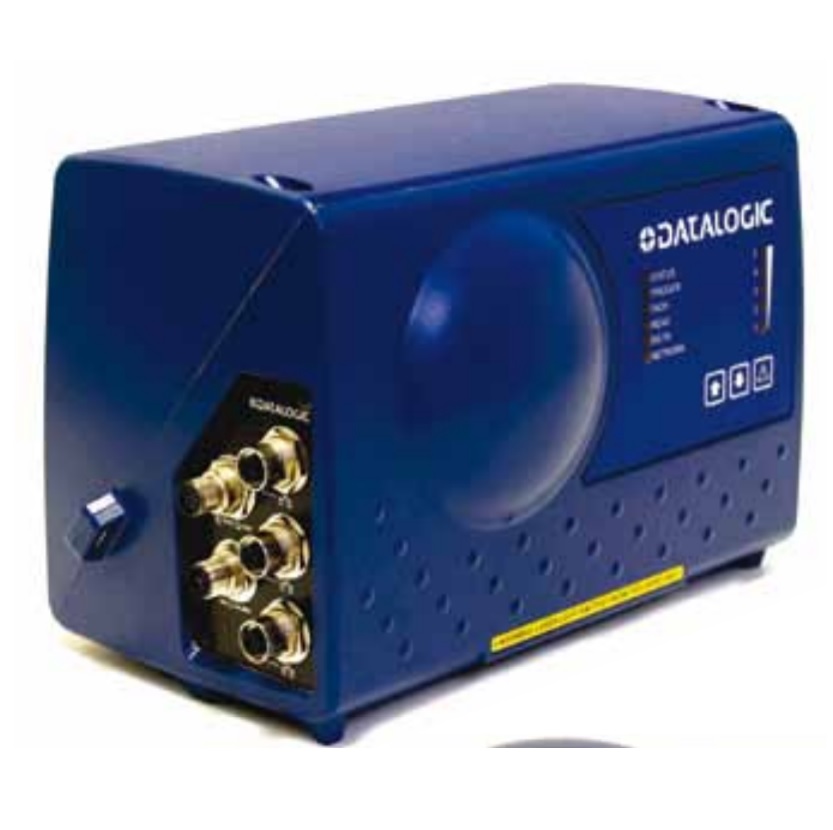

Below picture may contain accessories which may not include in the product you purchase, call our sales agent to verify before purchase.
