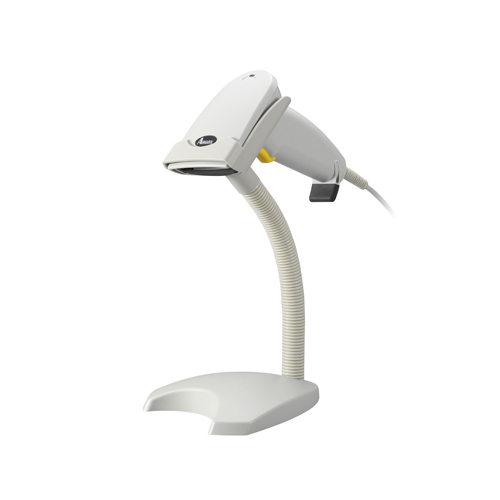

Argox AS8150 LR Linear Imager
Model No: AS8150
The durable and ergonomically designed AS-8150 is the best-value handheld scanners in its class. This mid-range CCD scanners replaces traditional laser bar code scanners with a high-speed scanners, but at a lower cost. The AS-8150 has a high intensity aiming line and captures bar codes from as far away as 200 mm. High speed bar code captures at 200 scans per second use our patented “Digi-Decode” technology. This scanners is easy to aim and scans codes in any lighting environment. The AS-8150 features both handheld and fixed projection modes, as well as long-range activation and an adjustable stand (optional) for automated operation. Flash ROM with Meteor upgrade utility is included.
Specifications:
Light source 660 nm visible red LED.
Optical system 2048 pixel CCD (charge-coupled device).
Program upgrade Enabled by build-in flash memory.
Width-head 74 mm.
Depth of scan field 0-250mm.
Scanning width 120mm.
Scan speed 200scans/sec.
Shock 1.5m drop onto concrete.
Resolution 0.1mm (4mils) - Code 39,PCS=90 %, on contact.
EMC FCC Class A.
Decode capability Autodiscriminates all standard one-dimension barcodes; other symbologies can be ordered optionally.
Case material ABS plastic + PC.
Cushion material Rubber.
BROCHURE
