Introduction

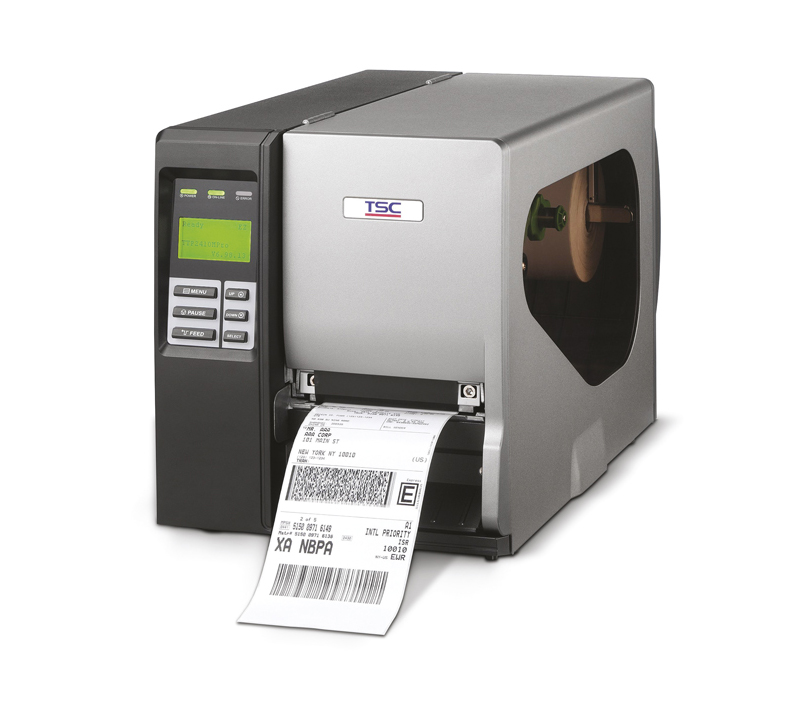

Durable High Quality Performance - The TTP-234M Pro Series is based on the proven TTP-246M platform with many significant changes.
Pro Series enhancements - The new Pro Series features a separate die-cast aluminium base plate and backplane that includes a metal media supply spindle and sturdy two roller damper. Built specifically for the budget–minded, this new design results in a more durable printer that is suited for your most heavy-duty demand cycles. Other enhancements include a new motor mount for quieter printing, a gap sensor lock to keep the label sensor from shifting, and a new anti-static ribbon brush. Finally, TSC has added an optional USB Host option for applications that require the use of either a USB scanner or keyboard.
Superb resolution, great warranty - There are two models available with the TTP-246M Pro Series. The TTP-246M Pro prints at 203 dpi at speeds up to eight inches per second, and TTP-344M Pro offers 300-dpi resolution at speeds up to six inches per second. All TSC printers feature a standard two-year limited warranty.
Loaded with standard features - The TTP-246M Pro Series printers are loaded with standard features including support for 600 meter ribbons, 8.2”OD media rolls, a large 6-button LCD display, built-in USB 2.0, parallel and serial interfaces. An internal Ethernet networking for simple integration, GPIO port or a USB Host port is available as an option.
Memory to spare - The Pro Series offers memory, including 8 MB DRAM and 4 MB FLASH, which provides easy storage of fonts, international character sets and graphics. The Pro Series also includes a secure digital (SD) FLASH memory card reader for inexpensively adding up to 4 GB of memory as an option.
Powerful TSPL-EZ™ Printer Programming Language - TSC ships TSPL-EZ™ firmware in all its printers. TSPL-EZ™ supports three different printer languages including TSC printer language, TPLE (Translation Printer Language Eltron ), and TPLZ (Translation Printer Language Zebra ). TSPL-EZ™ features internal scalable True Type fonts, and a BASIC interpreter with file manager for creating powerful printer interface applications with multiple type of hosts.
Features
Heavy duty die-cast aluminum design
600-meter ribbon supply
Large LCD display with 6-button menus
USB 2.0, serial and parallel connectivity are standard
Available in 203 and 300 dpi resolution versions
Up to 203 mm (8”) per sec. print speed
32-bit RISC processor
TSPL-EZ™ firmware for plug-n-play ease
Powerful basic programming tools
Options include: Ethernet; USB host for use with keyboards and scanners; peel, present & rewind; cutter
