BRAND: DATALOGIC >> MODEL: GD4100 >> PART NUMBER: GD4130BKK1

GD4100
Category:
BARCODE SCANNING
Brand:
DATALOGIC
Model:
GD4100
Part No:
GD4130BKK1
Barcode:
GD4130BKK1
Type:
MAIN UNIT
Description:
GD4130BKK1 GRYPHON I LINEAR IMAGER USB KIT 1D LINEAR IMAGER READER BLACK
OrderNo:
BAR00631


Introduction
With rich feature sets and extensive model options, the Gryphon™ product series from Datalogic ADC represents the premium level of data collection equipment for general purpose applications. The Gryphon I linear imaging readers provide advanced reading performance and decoding for a wide variety of applications. The Gryphon GD4100 readers’ ability to capture bar codes from near contact to over 1.0 m / 3.9 ft increases productivity and improves ergonomics for users. A wide scan angle reads very wide codes and renewed decoding capabilities increase throughput on hard-to-read, poor or damaged codes. All of these features combined with low-resolution decoding for labels as small as 3 mils, establishes the Gryphon I GD4100 readers as high-performance products and powerful data capture solutions.
Datalogic’s exclusive patented ‘Green Spot’ technology for good-read feedback directly on the code is ideal under dim lighting conditions or noisy environments. The Green Spot, together with the fast reading and decoding capabilities make the Gryphon I GD4100 readers the best choice to improve productivity in retail and office environments, hospitals, pharmacies, warehouses and manufacturing plants.
The Gryphon I GD4100 readers offer a choice of two sets of multi-interface options: USB, Keyboard Wedge, RS-232 and Wand Emulation, or for use in point-of-sale (POS) environments, IBM 46XX, USB and RS-232.

Features
Extremely snappy reading performance with speeds up to 325 reads/second
Extended reading distances including up to 60.0 cm / 23.6 in for 13 mil UPC/EAN 13 labels
Wide 42° scan angle for reading wider codes
Datalogic's patented 'Green Spot' technology for good-read feedback
Remote Host Download lowers service costs and improves operations (GD4110 Model)
Multi-interface solutions support most popular interfaces including USB, RS-232, Keyboard Wedge, IBM 46XX and Wand
Checkpoint Systems EAS compatible model
USB Certified Kits Available

Gryphon I GD4100 Models and Kits
Gryphon I GD4110, Kit, IBM, Linear Imager, IBM46xx/IBM USB/RS-232 Multi-Interface, Black (Kit inc. Imager and USB Cable 90A052055)GD4110-BKK10
Gryphon I GD4110, Kit, IBM46xx, Linear Imager, IBM46xx/IBM USB/RS-232 Multi-Interface, Black (Kit inc. Imager and IBM46xx Cable 90A052042)GD4110-BKK40
Gryphon I GD4110, Kit, RS-232, Linear Imager, IBM46xx/IBM USB/RS-232 Multi-Interface, For Magellan, Black (Kit inc. Imager and RS-232 cable 90G001095)GD4110-BKK20
Gryphon I GD4110, Linear Imager, IBM46xx/IBM USB/RS-232 Multi-Interface, BlackGD4110-BK
Gryphon I GD4110, Linear Imager, IBM46xx/IBM USB/RS-232 Multi-Interface, EAS, WhiteGD4110-WH EAS
Gryphon I GD4110, Linear Imager, IBM46xx/IBM USB/RS-232 Multi-Interface, WhiteGD4110-WH
Gryphon I GD4130, Kit, USB, Linear Imager, USB/RS-232/KBW/Wand Multi-Interface, Black (Kit inc. Imager and Enhanced USB Cable 90A052065)GD4130-BKK12
Gryphon I GD4130, Kit, USB, Linear Imager, USB/RS-232/KBW/Wand Multi-Interface, Black (Kit inc. Imager and USB Cable 90A052044)GD4130-BKK1
Gryphon I GD4130, Kit, USB, Linear Imager, USB/RS-232/KBW/Wand Multi-Interface, White (Kit inc. Imager and USB Cable 90A052044)GD4130-WHK1
Gryphon I GD4130, Linear Imager, USB/RS-232/KBW/Wand Emulation Multi-Interface, BlackGD4130-BK
Gryphon I GD4130, Linear Imager, USB/RS-232/KBW/Wand Emulation Multi-Interface, Health CareGD4130-HC
Gryphon I GD4130, Linear Imager, USB/RS-232/KBW/Wand Multi-Interface, WhiteGD4130-WH
EASEOFCARE AGREEMENTS
Gryphon I GD4100 EofC 2 Days Comprehensive, 1 Year RenewalW-GD41-R
Gryphon I GD4100 EofC 2 Days Comprehensive, 3 YearsW-GD41-3
Gryphon I GD4100 EofC 2 Days Comprehensive, 5 YearsW-GD41-5
Gryphon I GD4100 EofC 5 Days, 1 Year RenewalE-GD41-R
Gryphon I GD4100 EofC 5 Days, 3 YearsE-GD41-3
Gryphon I GD4100 EofC 5 Days, 5 YearsE-GD41-5
Gryphon I GD4100 EofC Overnight Replacement Comprehensive, 1 Year RenewalQ-GD41-R
Gryphon I GD4100 EofC Overnight Replacement Comprehensive, 3 YearsQ-GD41-3
Gryphon I GD4100 EofC Overnight Replacement Comprehensive, 5 YearsQ-GD41-5
MINIMUM REPAIR CHARGE,GRYPHON GD41XX34812-80
WHOLE UNIT REPAIR,GRYPHON GD41XX34812-81
CABLES
Cable, IBM 46xx, Port 5b, CAB-445 (Gryphon D412/432 Plus Only), 6.5 ft.90A051977
Cable, IBM 46xx, Port 9B, CAB-446, 12 ft., Coiled90A052042
Cable, IBM 46xx, Port 9B, CAB-446, 2 Meters90A051978
Cable, IBM AT/XT, KBW, Din Connector, Straight, CAB-322, 7 ft.90G001020
Cable, IBM PS/2, KBW, Minidin Connector, Coiled, CAB-365, 6 ft.90A051360
Cable, IBM PS/2, KBW, Minidin Connector, External Power Supply, Coiled, CAB-391, 11 ft.90A051740
Cable, IBM VDT. 3151, 34XX, KBW, 8-pin Telephone Connector, Straight, CAB-325, 11 ft.90G001050
Cable, KBW, 4P, Telephone Connector, DEC VDT VT200/220/240/300/320/340/420, CAB-375, 6 ft.90A051490
Cable, RS-232, 25P, Female, Coiled, CAB-363 (Power available on pin 9 of the connector or through external power supply), 6 ft.90A051340
Cable, RS-232, 25P, Female, Straight, CAB-328 (Power Supply available on pin 9 of the connector or with external power supply), 2 Meters90G001080
Cable, RS-232, 25P, Male, Coiled, CAB-364 (Power Supply available on pin 9 of the connector or through external power supply), 6.5 ft.90A051350
Cable, RS-232, 25P, Male, Straight, CAB-320 (Power available on pin 25 of the connector or through power supply), 6 ft.90G001000
Cable, RS-232, 9P, Female, Coiled, CAB-362, External Power, 6 ft.90A051330
Cable, RS-232, 9P, Female, Coiled, CAB-408 (Power available on pin 9 of the connector or through external power supply), 6 ft.90A051891
Cable, RS-232, 9P, Female, Straight, CAB-327, Requires External Power, 6 ft.90G000008
Cable, RS-232, 9P, Female, Straight, CAB-350 (Power Supply available on pin 9 of the connector or through external power supply), 6 ft.90A051230
Cable, RS-232, 9P, Male, Beetle POS, Straight, CAB-389, Power Off Terminal, 6.5 ft.90A051710
Cable, RS-232,6' (For Magellan)90G001092
Cable, USB, PowerPlus, Straight, 6', CAB-413E90A052045
Cable, USB, Type A, Coiled, 9', CAB-424E90A052043
Cable, USB, Type A, Enhanced, Coiled, Power Off Terminal, 5 Meters90A052066
Cable, USB, Type A, Enhanced, Straight, Power Off Terminal, 2M (USB Certified)90A052065
Cable, USB, Type A, Straight, 6', CAB-426E (USB Certified)90A052044
Cable, Wand Emulation, 9P, Male, Coiled, CAB-348, 3.2 ft.90A051210
Cable, Wand Emulation, 9P, Male, Straight, CAB-323, 6 ft.90G001030
Cable, WYSE VDT 60/120/160/185/370, KBW, 4P, Telephone Connector, Straight, CAB-373, 6 ft.90A051470
CASES/HOLSTERS
Protective Case/Belt Holster, GryphonPC-G040
MOUNTS/STANDS
Holder, Desk/Wall Mount, G040, BlackHLD-G040-BK
Holder, Desk/Wall Mount, G040, WhiteHLD-G040-WH
Holder, Multi-Purpose, Black11-0360
Holder, Multi-Purpose, Grey11-0362
Stand, Basic, G040, Dark GreySTD-G040-BK
Stand, Basic, G040, WhiteSTD-G040-WH
Stand, Smart Stand, G040, BlackSTD-AUTO-G040-BK
Stand, Smart Stand, G040, WhiteSTD-AUTO-G040-WH
POWER SUPPLIES/CORDS
Power Adapter, 12V DC, AC/DC Regulated, RoHS (For Use with 6003-XXXX Power Cords)8-0935
Power Supply, 5VDC, PG5-05P55 (without power cord)90ACC1882
Power Supply, 5VDC, US, PG5-05P55-US (includes power cord 90ACC1886)90ACC1893


BROCHURE




Below picture may contain accessories which may not include in the product you purchase, call our sales agent to verify before purchase.

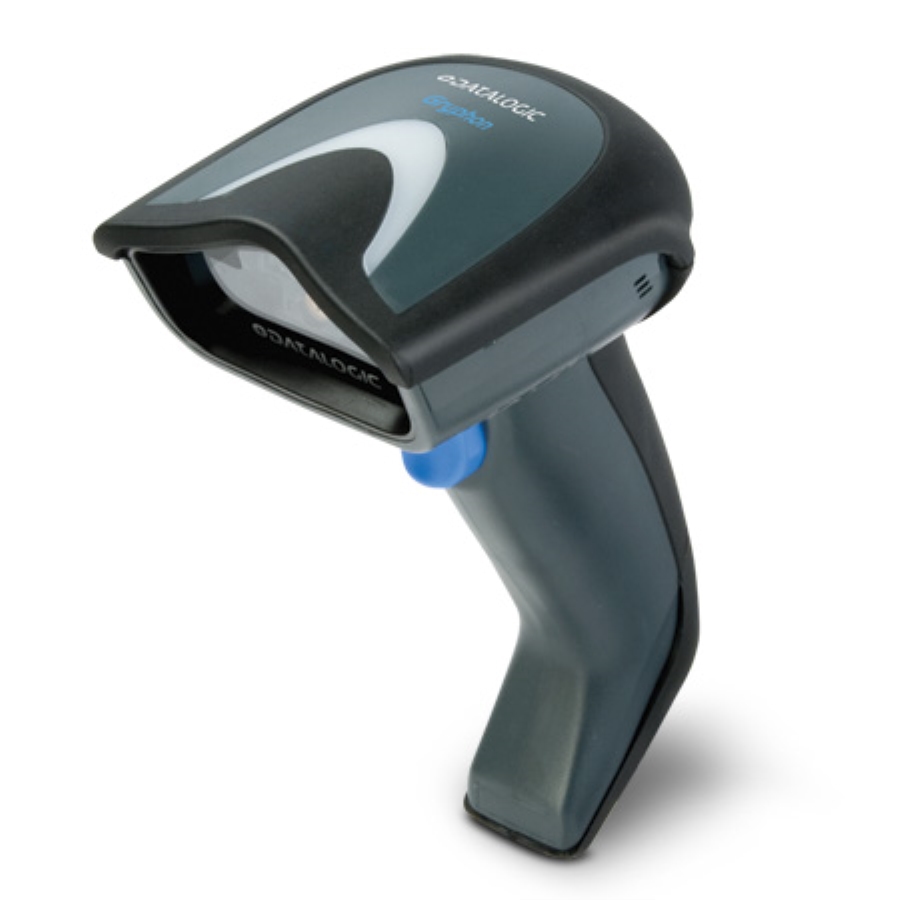

Different view of DATALOGIC GD4100 GD4130BKK1
Last Modified On: 19/Dec/2021 14:17:05 PM

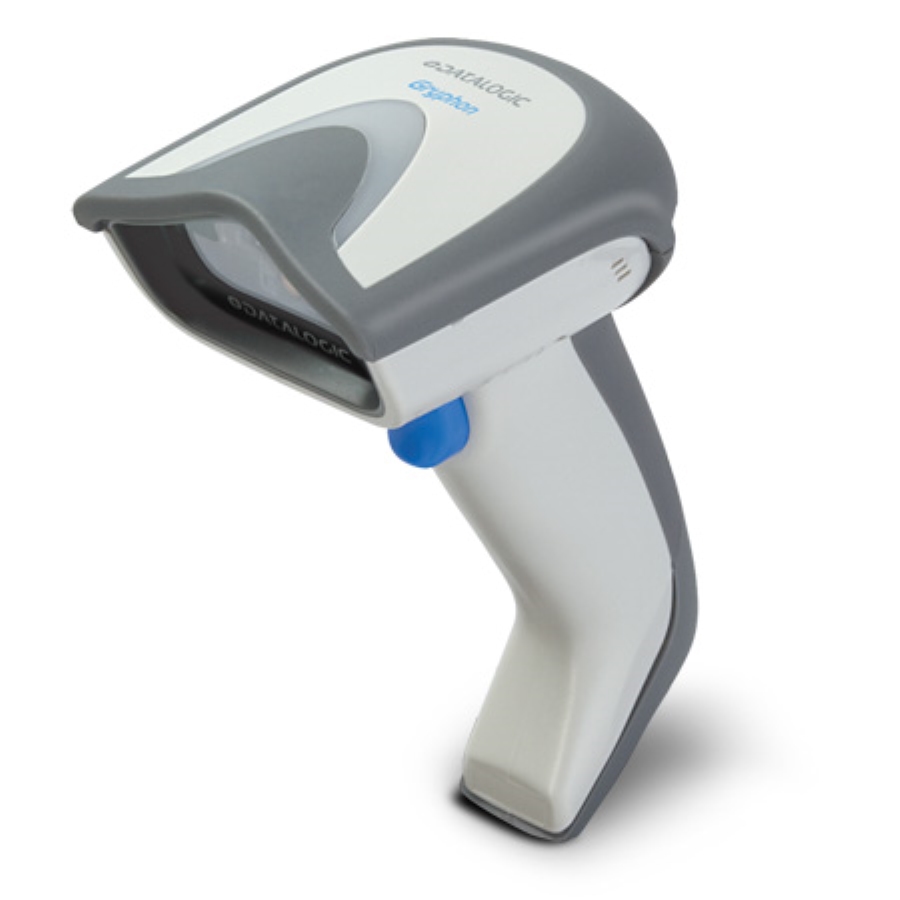

Different view of DATALOGIC GD4100 GD4130BKK1
Last Modified On: 19/Dec/2021 14:17:05 PM
